General Description

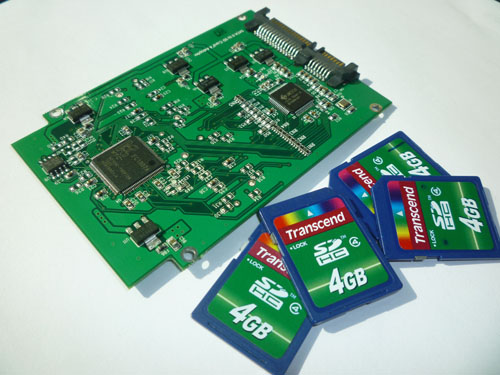

The FC1307A is a highly integrated solution for multi-channel SDHC interface to Compact-Flash/IDE interface application. It can handle data process between one slave Compact-Flash/IDE and up to four host SDHC interface. FC1307A built-in function which can speed/size up 4-channel SDHC host interface to Compact-Flash/IDE interface. FC1307A is fully compatible with the Compact-Flash standard 4.1 as well as the SDHC 2.0.
2. Features
2.1 Compliant with PC Card Standard 8.0
2.2 Compliant with PCMCIA 2.1/JIEDA 4.2
2.3 Compliant with ATA/ATAPI-6
2.4 Compliant with Compact Flash (CF+) 4.1
2.5 Compact Flash storage card mode using PC card memory , PC card IO and True-IDE modes
2.6 Support the following modes on the Compact Flash/CF+ interface
2.6.1 PC card memory mode and PC card IO mode of operation using either an 8-bits or 16-bits wide data
2.6.2 Attribute memory , common memory and IO access in PC card/PCMCIA mode.
2.7 Support advanced timing modes for memory/IO access (CF+ rev4.1)
2.8 Support PIO mode-0 thru mode-6.
2.9 Support Multi-word DMA mode-0 thru mode-4.
2.10 Support Ultra DMA mode-0 thru mode-6.
2.11 General SPI interface signal control
2.12 General purpose IOs

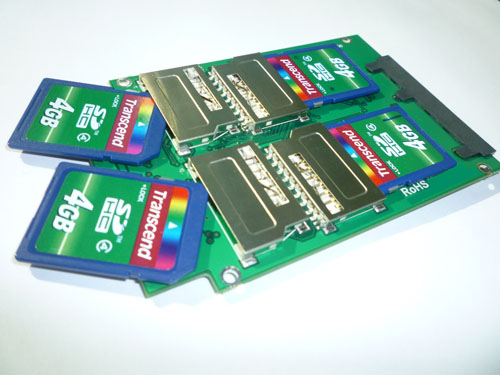

2.13 Expandable 4-channel SD HOST module
