Product Highlights
Dramatically Simplifi es CV/CC Converters
   Eliminates Optocoupler and all secondary CV/CC controlcircuitry
   Eliminates all control loop compensation circuitry
Advanced Performance Features
   Compensates for transformer inductance tolerances
   Compensates for input line voltage variations
   Compensates for cable voltage drop (LNK61X series)
   Compensates for external component temperature variations
   Very tight IC parameter tolerances using proprietary trimmingtechnology
   Frequency jittering greatly reduces EMI fi lter cost
   Even tighter output tolerances achievable with external resistorselection/trimming
Advanced Protection/Safety Features
   Auto-restart protection reduces power delivered by >95% foroutput short circuit and control loop faults (open and shortedcomponents)
   Hysteretic thermal shutdown – automatic recovery reduces
   power supply returns from the fi eld
   Meets HV creepage requirements between Drain and all otherpins both on the PCB and at the package
EcoSmart® – Energy Effi cient
   Easily meets all global energy effi ciency regulations
   No-load consumption <200 mW at 230 VAC and down tobelow 30 mW with optional external bias
   On/Off control provides constant effi ciency down to very lightloads – ideal for CEC and ENERGY STAR 2.0 regulations
   No current sense resistors – maximizes effi ciency
Green Package
   Halogen free and RoHS compliant package
Applications
   Chargers for cell/cordless phones, PDAs, MP3/portable audiodevices, adapters, LED drivers, etc.

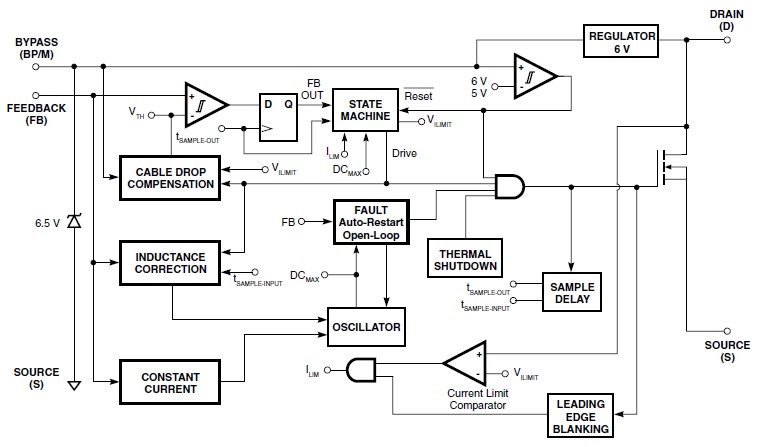

Functional Block Diagram

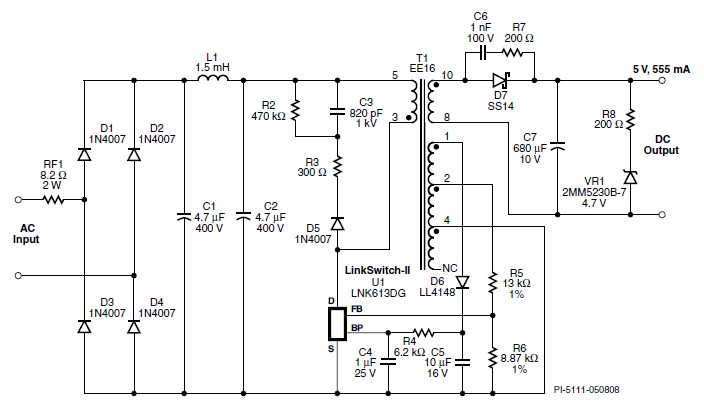

Applications Example
