General description

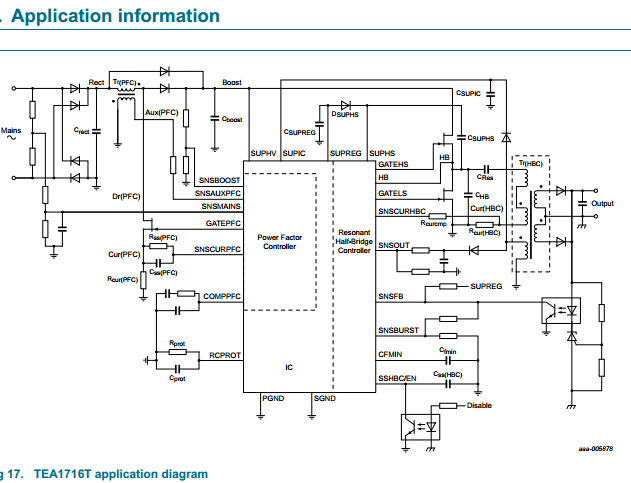

The TEA1716T integrates a Power Factor Corrector (PFC) controller and a controller for a
Half-Bridge resonant Converter (HBC) in a multi-chip IC. It provides the drive function for
the discrete MOSFET in an up-converter and for the two discrete power MOSFETs in a
resonant half-bridge configuration.
Efficient PFC operation is achieved by implementing functions for Quasi-Resonant (QR)
operation at high-power levels and QR operation with valley skipping at lower power
levels. OverCurrent Protection (OCP), OverVoltage Protection (OVP) and
demagnetization sensing ensure safe operation under all conditions.
The HBC module is a high-voltage controller for a zero-voltage switching LLC resonant
converter. It contains a high-voltage level shift circuit and several protection circuits
including OCP, open-loop protection, capacitive mode protection and a general purpose
latched protection input.
The high-voltage chip is fabricated using a proprietary high-voltage Bipolar-CMOS-DMOS
power logic process enabling efficient direct start-up from the rectified universal mains
voltage. The low-voltage Silicon-On-Insulator (SOI) chip is used for accurate, high-speed
protection functions and control.
TEA1716T controlled PFC circuit and resonant converter are very flexible. It can be used
for a broad range of applications over a wide mains voltage range. Combining PFC and
HBC controllers in a single IC makes the TEA1716T ideal for controlling power supplies in
LCD and plasma televisions.
Using the TEA1716T highly efficient and reliable power supplies providing from 90 W to
500 W can be designed easily using the TEA1716T, with a minimum of external
components.
The integrated Burst mode and power management functionality of TEA1716T enable
resonant applications that meet the Energy Using Product Directive (EuP) lot 6
(< 0.5 W in Standby mode).
Remark: Unless otherwise stated, all values are typical.

2.1 General features
 Integrated PFC and HBC controllers
 Universal mains supply operation from 70 V to 276 V (AC)
 High level of integration resulting in a low external component count and a cost
effective design
 Integrated Burst mode sensing
 Compliant with Energy Using Product Directive (EuP) lot 6
 Enable input to enable only the PFC or both the PFC and HBC controllers
 On-chip high-voltage start-up source
 Stand-alone operation or IC supplied from external DC source
2.2 PFC controller features
 Boundary mode operation with on-time control
 Valley/zero-voltage switching for minimum switching losses
 Frequency limiting to reduce switching losses
 Accurate boost voltage regulation
 Burst mode switching with soft-start and soft stop
2.3 HBC controller features
 Integrated high-voltage level shifter
 Adjustable minimum and maximum frequency
 Maximum 500 kHz half-bridge switching frequency
 Adaptive non-overlap time
 Burst mode switching
2.4 Protection features
 Safe restart mode for system fault conditions
 General latched protection input for output overvoltage protection or external
temperature protection
 Protection timer for time-out and restart
 Overtemperature protection
 Soft (re)start for both controllers
 Undervoltage protection for mains (brownout), boost, IC supply and output voltage
 Overcurrent regulation and protection for both controllers
 Accurate overvoltage protection for the boost voltage
 Capacitive mode protection for the HBC controller
