Flexible Dimming Solution by PWM / 0-10V / Potentiometer

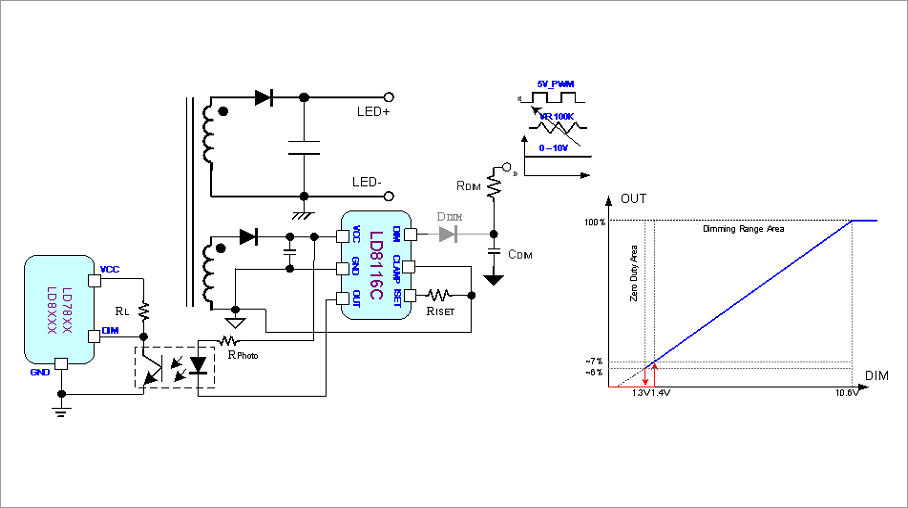

The LD8116C contains a processor which can convert the three different inputs of dimmer type include 0~10V DC potential, 0~100% duty cycle PWM (Plus Width Modulation) signal and potentiometer become a PWM signal output. It is easy to provide the isolation dimming control that via opto-coupler for smart LED lighting application.
The device features include wide input voltage from 13V to 58V, adjustable bias current source for potentiometer and high precision LED dimming current.
特点
-
Wide VCC operating range
-
Low operation current
-
Precision dimmer type with
-
Voltage potential : 0/1V to 10V
-
PWM dimming : 0.2k to 10kHz
-
Potentiometer : 0 to 100k Ohm.
-
Adjustable bias current source of DIM pin
-
Adjustable minimum output PWM duty clamping
-
Built in over temperature protection for Chip
应用
-
Dimmable LED Power Supply
-
Dimming Control Devices
 |
